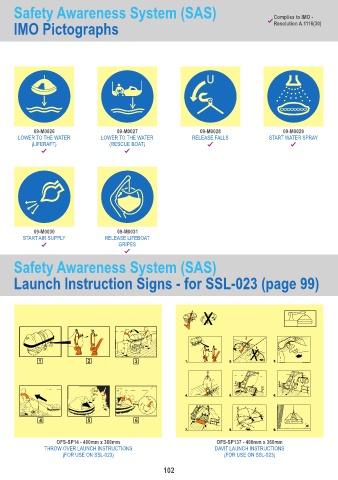

Safety Awareness System (SAS) Complies to IMO -

IMO Pictographs Resolution A.1116(30)

09-M0026 09-M0027 09-M0028 09-M0029
LOWER TO THE WATER LOWER TO THE WATER RELEASE FALLS START WATER SPRAY
(LIFERAFT) (RESCUE BOAT)

09-M0030 09-M0031
START AIR SUPPLY RELEASE LIFEBOAT
GRIPES
Safety Awareness System (SAS)

Launch Instruction Signs - for SSL-023 (page 99)

1 2 3 1. 2. 3.

4. 5. 6.

4 5 6
2M
7. 8. 9.
OFS-SP14 - 400mm x 360mm OFS-SP137 - 400mm x 360mm
THROW OVER LAUNCH INSTRUCTIONS DAVIT LAUNCH INSTRUCTIONS
(FOR USE ON SSL-023) (FOR USE ON SSL-023)
