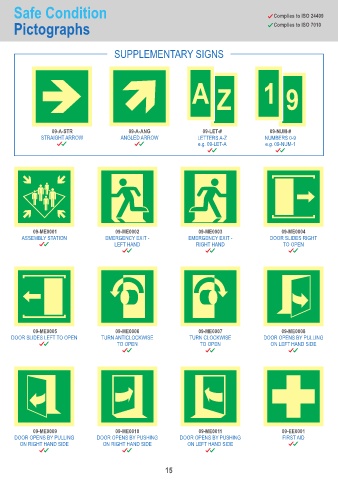

Page 15 - Seaward Safety

Safe Condition Complies to ISO 24409

Pictographs Complies to ISO 7010

SUPPLEMENTARY SIGNS

A Z 1 9

09-A-STR 09-A-ANG 09-LET-# 09-NUM-#
STRAIGHT ARROW ANGLED ARROW LETTERS A-Z NUMBERS 0-9
e.g. 09-LET-A e.g. 09-NUM-1

09-ME0001 09-ME0002 09-ME0003 09-ME0004
ASSEMBLY STATION EMERGENCY EXIT - EMERGENCY EXIT - DOOR SLIDES RIGHT
LEFT HAND RIGHT HAND TO OPEN

09-ME0005 09-ME0006 09-ME0007 09-ME0008
DOOR SLIDES LEFT TO OPEN TURN ANTICLOCKWISE TURN CLOCKWISE DOOR OPENS BY PULLING
TO OPEN TO OPEN ON LEFT HAND SIDE

09-ME0009 09-ME0010 09-ME0011 09-EE0001
DOOR OPENS BY PULLING DOOR OPENS BY PUSHING DOOR OPENS BY PUSHING FIRST AID
ON RIGHT HAND SIDE ON RIGHT HAND SIDE ON LEFT HAND SIDE
