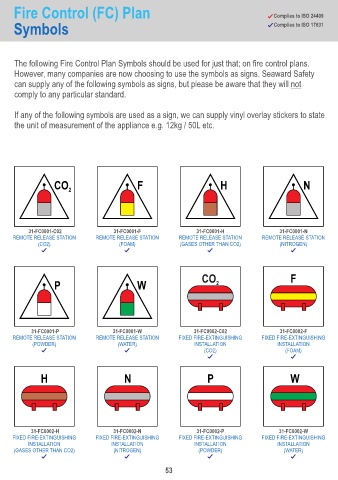

Fire Control (FC) Plan Complies to ISO 24409

Symbols Complies to ISO 17631

The following Fire Control Plan Symbols should be used for just that; on fire control plans.
However, many companies are now choosing to use the symbols as signs. Seaward Safety
can supply any of the following symbols as signs, but please be aware that they will not
comply to any particular standard.

If any of the following symbols are used as a sign, we can supply vinyl overlay stickers to state
the unit of measurement of the appliance e.g. 12kg / 50L etc.

CO F H N
2

31-FC0001-C02 31-FC0001-F 31-FC0001-H 31-FC0001-N
REMOTE RELEASE STATION REMOTE RELEASE STATION REMOTE RELEASE STATION REMOTE RELEASE STATION
(CO2) (FOAM) (GASES OTHER THAN CO2) (NITROGEN)

CO F
P W 2

31-FC0001-P 31-FC0001-W 31-FC0002-C02 31-FC0002-F
REMOTE RELEASE STATION REMOTE RELEASE STATION FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING
(POWDER) (WATER) INSTALLATION INSTALLATION
(CO2) (FOAM)

H N P W

31-FC0002-H 31-FC0002-N 31-FC0002-P 31-FC0002-W
FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING
INSTALLATION INSTALLATION INSTALLATION INSTALLATION
(GASES OTHER THAN CO2) (NITROGEN) (POWDER) (WATER)
53
