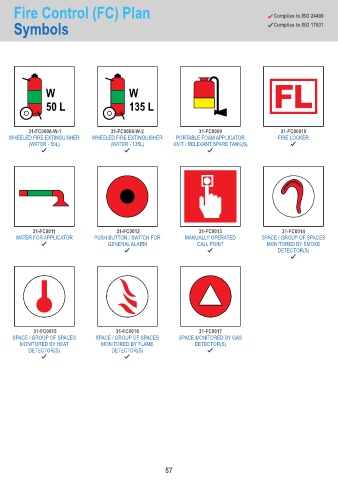

Fire Control (FC) Plan Complies to ISO 24409

Symbols Complies to ISO 17631

W W FL
50 L 135 L

31-FC0008-W-1 31-FC0008-W-2 31-FC0009 31-FC00010
WHEELED FIRE EXTINGUISHER WHEELED FIRE EXTINGUISHER PORTABLE FOAM APPLICATOR FIRE LOCKER
(WATER - 50L) (WATER - 135L) UNIT / RELEVANT SPARE TANK(S)

31-FC0011 31-FC0012 31-FC0013 31-FC0014
WATER FOR APPLICATOR PUSH BUTTON / SWITCH FOR MANUALLY OPERATED SPACE / GROUP OF SPACES
GENERAL ALARM CALL POINT MONITORED BY SMOKE
DETECTOR(S)

31-FC0015 31-FC0016 31-FC0017
SPACE / GROUP OF SPACES SPACE / GROUP OF SPACES SPACE MONITORED BY GAS
MONITORED BY HEAT MONITORED BY FLAME DETECTOR(S)
DETECTOR(S) DETECTOR(S)
