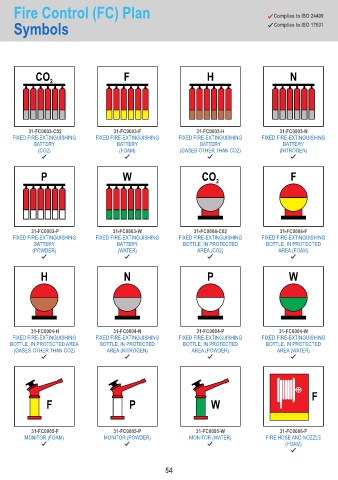

Page 54 - Seaward Safety

Fire Control (FC) Plan Complies to ISO 24409

Symbols Complies to ISO 17631

CO F H N
2

31-FC0003-C02 31-FC0003-F 31-FC0003-H 31-FC0003-N
FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING
BATTERY BATTERY BATTERY BATTERY
(CO2) (FOAM) (GASES OTHER THAN CO2) (NITROGEN)

P W CO F
2

31-FC0003-P 31-FC0003-W 31-FC0004-C02 31-FC0004-F
FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING
BATTERY BATTERY BOTTLE, IN PROTECTED BOTTLE, IN PROTECTED
(POWDER) (WATER) AREA (CO2) AREA (FOAM)

H N P W

31-FC0004-H 31-FC0004-N 31-FC0004-P 31-FC0004-W
FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING FIXED FIRE-EXTINGUISHING
BOTTLE, IN PROTECTED AREA BOTTLE, IN PROTECTED BOTTLE, IN PROTECTED BOTTLE, IN PROTECTED
(GASES OTHER THAN CO2) AREA (NITROGEN) AREA (POWDER) AREA (WATER)

F
F P W

31-FC0005-F 31-FC0005-P 31-FC0005-W 31-FC0006-F
MONITOR (FOAM) MONITOR (POWDER) MONITOR (WATER) FIRE HOSE AND NOZZLE
(FOAM)

54
